The first part of the lab served as a reminder from last week’s lab, reinforcing how serial communication works between Arduino and P5.
I set up the potentiometers and switch on my breadboard. I set up the code in Arduino and P5.js respectively. First, I tested to make sure my inputs and code was working in Arduino.
Then, I got the analog mouse and circle appear/disappear button working in P5.js.
Designing a new physical interface
The second part of the lab took me more time. The lab suggested:
“What applications can you think of that could use a better physical interface for a mouse? A video editor that scrubs forward and back when you tilt a wand? An action game that reacts to how hard you hit a punching bag? An instructional presentation that speeds up if you shift in your chair too much? A music program driven by a custom musical instrument that you design?”

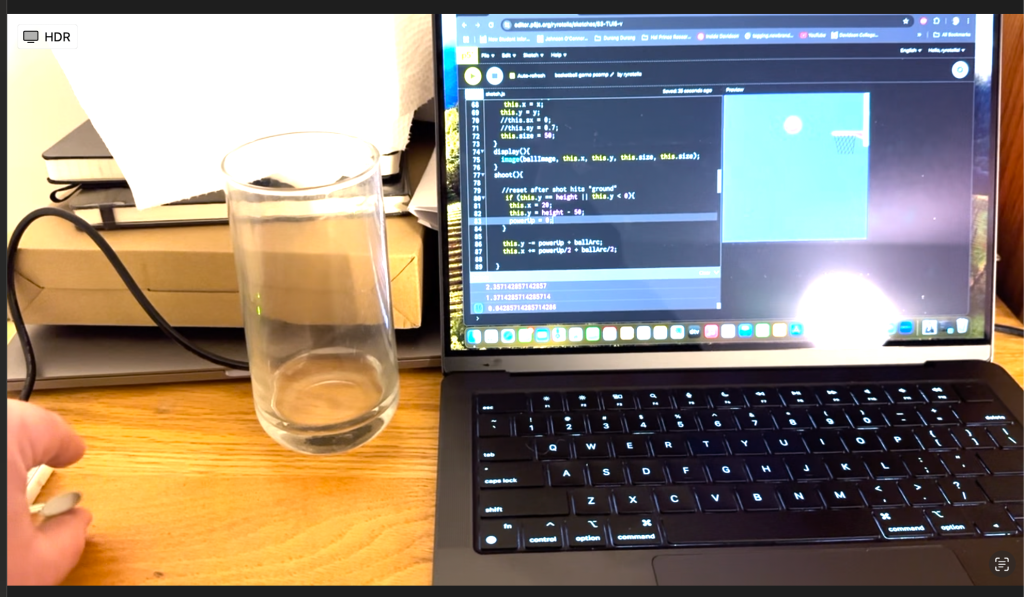

I spent a lot of time trying to think of a good and simple interface that could be made physical with Arduino. At first, I wanted to color a canvas using a FSR to measure how much water was present in a cup. This did not work because the FSRs only respond to the push of pressure, which does not change when water is poured into/drank out of a cup. For this to work, I would need a weight scale, which I do not have.
Instead, I thought more, which took more time. Eventually, I wound up wanting to still use an FSR but for a basketball game. The basketball will fly up on screen with whatever force a user presses the FSR with. I like that this makes a basketball video game feel more physical like the actual sport, even if it is a little gesture.
It’s not perfect. I need to build upon the P5 code more to give the basketball a falling arc and see if it goes in the hoop or not. I would like to build more graphics for success or failure as well as color changes and stats, but for now, here is my prototype.
p5 code
// variable to hold an instance of the p5.webserial library:
const serial = new p5.WebSerial();
let hoop;
let r, g, b;
let ballImage;
let bBall;
let ballArc = 10;
let powerUp;
// HTML button object:
let portButton;
let inData; // for incoming serial data
let outData; // for outgoing data
function preload(){
hoop = loadImage("basketball-hoop-clipart-md.png");
ballImage = loadImage("Basketball.png");
}
function setup() {
createCanvas(400, 400);
r = 150;
g = 150;
b = 250;
// check to see if serial is available:
if (!navigator.serial) {
alert("WebSerial is not supported in this browser. Try Chrome or MS Edge.");
}
// if serial is available, add connect/disconnect listeners:
navigator.serial.addEventListener("connect", portConnect);
navigator.serial.addEventListener("disconnect", portDisconnect);
// check for any ports that are available:
serial.getPorts();
// if there's no port chosen, choose one:
serial.on("noport", makePortButton);
// open whatever port is available:
serial.on("portavailable", openPort);
// handle serial errors:
serial.on("requesterror", portError);
// handle any incoming serial data:
serial.on("data", serialEvent);
serial.on("close", makePortButton);
bBall = new Ball(0, height-50);
}
function draw() {
background(r, g, b);
drawHoop();
bBall.display();
if (powerUp){
console.log(powerUp);
bBall.shoot();
}
}
function drawHoop(){
image(hoop, 300, 0, 2/4*width, height);
}
class Ball {
constructor(x, y){
this.x = x;
this.y = y;
//this.sx = 0;
//this.sy = 0.7;
this.size = 50;
}
display(){
image(ballImage, this.x, this.y, this.size, this.size);
}
shoot(){
//reset after shot hits "ground"
if (this.y == height || this.y < 0){
this.x = 20;
this.y = height - 50;
powerUp = 0;
}
this.y -= powerUp + ballArc;
this.x += powerUp/2 + ballArc/2;
this.y += 0.7;
}
}
// if there's no port selected,
// make a port select button appear:
function makePortButton() {
// create and position a port chooser button:
portButton = createButton("choose port");
portButton.position(10, 10);
// give the port button a mousepressed handler:
portButton.mousePressed(choosePort);
}
// make the port selector window appear:
function choosePort() {
serial.requestPort();
}
// open the selected port, and make the port
// button invisible:
function openPort() {
// wait for the serial.open promise to return,
// then call the initiateSerial function
serial.open().then(initiateSerial);
// once the port opens, let the user know:
function initiateSerial() {
console.log("port open");
//send byte to start microcontroller sending
serial.print("x");
}
// hide the port button once a port is chosen:
if (portButton) portButton.hide();
}
// read any incoming data as a byte:
function serialEvent() {
//read string from serial port until
//carriage return - /r - and newline - /n
var inString = serial.readStringUntil("\r\n");
//check to see if string exists
if (inString) {
if (inString != "hello") {
powerUp = map(inString, 50, 400, 0, 15);
//send a byte back to prompt for more data
serial.print('x');
}
}
}
// pop up an alert if there's a port error:
function portError(err) {
alert("Serial port error: " + err);
}
// try to connect if a new serial port
// gets added (i.e. plugged in via USB):
function portConnect() {
console.log("port connected");
serial.getPorts();
}
// if a port is disconnected:
function portDisconnect() {
serial.close();
console.log("port disconnected");
}
Arduino code
int threshold = 50;
void setup() {
// put your setup code here, to run once:
Serial.begin(9600);
while (Serial.available() <= 0){
Serial.println("hello"); //send starting message
delay(300); // wait 1/3 second
}
}
void loop() {
// put your main code here, to run repeatedly:
if (Serial.available() > 0){
//read analog sensor
int sensorValue = analogRead(A0);
if (sensorValue > threshold){
Serial.println(sensorValue);
}
}
}
